Gears are the language of power transmission. From the planetary gear system inside an electric vehicle drivetrain to the pinion gears driving industrial machinery, from the ring gears in heavy truck differentials to the sun gears at the heart of agricultural gearboxes, every gear in every machine has one job: transfer rotational power precisely, efficiently, and reliably.
The question that determines whether a gear lasts 5 years or 25 years, whether it runs quietly or noisily, whether it fails under load or performs flawlessly, is how it was made. And for high-performance, high-durability gears, the answer is always forging.
At Metalic Techno Forge (MTF), we manufacture forged gear blanks and finished gears, ring gears, planet gears, sun gears, and pinion gears for automotive, electric vehicle, agricultural, power transmission, and industrial customers across India, Germany, and the USA. This blog explains what each gear type is, how it works, why close die forging produces superior gears, and how MTF’s integrated gear manufacturing process delivers world-class precision.
Understanding the Planetary Gear System
Before diving into individual gear types, it helps to understand how ring gears, planet gears, and sun gears work together. These three gear types form the core of what engineers call a planetary gear system, one of the most efficient, compact, and powerful gear arrangements ever designed.
In a planetary gear system:
• Sun Gear: Sits at the centre and meshes with the planet gears. Typically, the input gear receives power from the engine or motor.
• Planet Gears: Orbit around the sun gear while also meshing with the ring gear. Mounted on a carrier that rotates as they orbit.
• Ring Gear: The outer gear with internal teeth. Meshes with all planet gears simultaneously. Can be fixed (stationary) or rotating, depending on the application.
• Pinion Gear: A small gear that meshes with a larger gear (rack or ring gear) to transfer and multiply torque. Used in differentials, steering systems, and final drive assemblies.
| Gear Type | Position in System | Primary Role |
| Sun Gear | Centre of planet system | Input: drives planet gears |
| Planet Gears | Orbit around sun gear | Power distribution and gear ratio |
| Ring Gear | Outer: internal teeth | Reaction/output element |
| Pinion Gear | Paired with larger gear/rack | Torque transfer and direction change |
Planetary gear systems are used in automatic transmissions, EV drivetrains, helicopter gearboxes, wind turbines, industrial reducers, and agricultural equipment, anywhere high torque density, compact size, and multiple gear ratios are needed in one unit.
The planetary gear system is one of the most mechanically elegant designs in engineering. Every gear must be manufactured to micron-level precision because in a planetary system, all gears are always in mesh simultaneously.

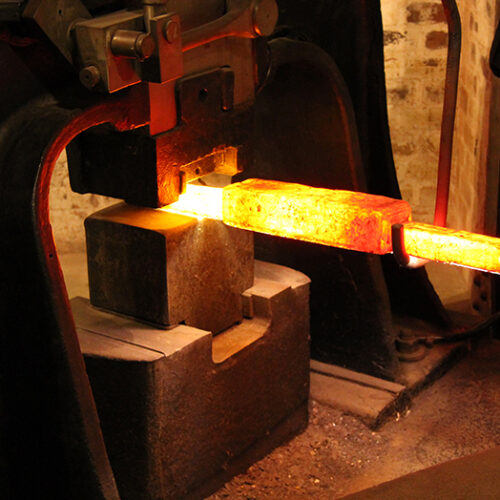

Why Close Die Forging is the Superior Process for Gear Manufacturing
Gears are among the most mechanically demanding components in any machine. They experience:
• Cyclic contact stress on every tooth face – millions of cycles over service life
• Bending stress at the tooth root – highest stress concentration in the gear
• Impact loads during engagement, load reversals, and shock inputs
• Sliding and rolling contact – requiring precise surface hardness and finish
To survive these demands, gears need a material structure that combines surface hardness with core toughness and that structure is best achieved starting from a close die forged blank.
Ring Gears – The Outer Power Boundary
What is a Ring Gear?
A ring gear (also called an annulus gear or internal gear) is a gear with teeth cut on its inner circumferential surface. In a planetary gear system, the ring gear is the outermost element its internal teeth mesh simultaneously with all planet gears, making it a critical load-distribution component.
Ring gears are used in:
• Automatic transmissions as fixed or rotating members controlling gear ratio
• EV drivetrains – in single and multi-speed planetary reduction units
• Differential assemblies – the large outer gear meshing with pinion gears
• Wind turbine gearboxes – handling massive torque in the primary stage
• Helicopter main gearboxes – where weight and strength are critical
• Agricultural tractor final drives – providing final gear reduction to wheels
Manufacturing Challenges of Ring Gears
Ring gears present unique manufacturing challenges compared to external gears:
• Internal Tooth Geometry: Internal teeth are more difficult to cut, requiring specialized broaching, internal hobbing, or shaping operations. The forged blank must have precise concentricity and bore roundness for these operations to succeed.
• Large Diameter with Thin Wall: Many ring gears are large diameter with relatively thin walls, making distortion during heat treatment a significant risk. Starting from a forged blank with a homogeneous grain structure minimizes heat treatment distortion.
• Simultaneous Multi-Tooth Contact: In a planetary system, the ring gear meshes with multiple planet gears simultaneously, meaning load is distributed across many teeth at once. All teeth must have identical geometry and surface hardness.
MTF Ring Gear Manufacturing
Forging the Ring Gear Blank
MTF produces ring gear blanks using close die forging, pressing heated billets into ring-shaped dies that produce a near-net shape with:
• Correct outer diameter and bore diameter within forging tolerances
• Consistent wall thickness and face width
• Continuous grain flow around the full circumference
• Minimal machining stock reducing subsequent hobbing and broaching time
Heat Treatment for Ring Gears
• Carburizing + Case Hardening: For automotive and EV ring gears, produces a hard tooth surface (58–62 HRC) with tough core. Tooth surface hardness resists contact fatigue while core toughness absorbs shock loads.
• Nitriding: For ring gears requiring dimensional stability, nitriding produces a hard surface with minimal distortion, ideal for precision-ground gears.
• Through Hardening (Q&T): For industrial and agricultural ring gears where uniform hardness through the section is required.
Gear Cutting and Finishing
After heat treatment, ring gear blanks are precision machined in MTF’s CNC shop:
• Internal tooth profile shaped or broached to DIN/AGMA standards
• Bore precision ground for press-fit or bearing interference
• Face grinding for axial runout control
• Gear tooth grinding for the highest precision class ring gears
Planet Gears – The Orbital Power Distributors
What are Planet Gears?
Planet gears are the intermediate gears in a planetary gear system that mesh simultaneously with both the central sun gear and the outer ring gear. They are mounted on a rotating carrier (planet carrier) and orbit around the sun gear while also spinning on their own axes, just like planets orbiting the sun, which is the origin of the name.
The number of planet gears in a system, typically 3, 4, or 6, determines load distribution. More planet gears means each gear carries less load, enabling higher torque capacity in a compact package.
Planet gears are used in:
• Automatic and dual-clutch transmissions (DCT)
• EV single-speed and multi-speed reduction gearboxes
• Hydraulic motor planetary reducers
• Industrial planetary gearboxes for conveyors, mixers, and extruders
• Aerospace actuator gearboxes
• Agricultural power take-off (PTO) gearboxes
Why Planet Gears Must Be Matched Sets
A critical requirement for planet gears is that all planet gears in a set must be manufactured to identical tooth geometry, pitch diameter, and tooth spacing. Any variation between planet gears causes unequal load sharing, which dramatically reduces fatigue life and generates noise and vibration.
MTF produces planet gears in matched sets from the same forging heat, same heat treatment batch, and same machining setup, ensuring the gear-to-gear variation is within the tight tolerances required for balanced load sharing in planetary assemblies.
MTF Planet Gear Manufacturing
Close Die Forging of Planet Gear Blanks
Each planet gear blank is forged to near-net shape with correct outside diameter, bore, and face width, minimising hobbing and grinding stock while preserving continuous grain flow from bore through tooth root to tooth tip. This is the grain structure that resists the combined bending and contact fatigue that planet gears experience in every revolution.
Heat Treatment
• Case Carburizing + Hardening: Standard process for automotive and EV planet gears. Produces 58–62 HRC tooth surface hardness with 35-45 HRC core, the ideal combination for contact fatigue resistance and impact toughness.
• Controlled Atmosphere Hardening: Prevents surface oxidation and decarburization, critical for maintaining tooth surface quality after heat treatment.
Gear Hobbing, Shaving, and Grinding
Planet gears are hobbed to DIN 6 or better accuracy class, followed by shaving for pre-hardened gears or tooth grinding post-hardening for the highest precision classes. MTF’s gear manufacturing capability covers module 1 to module 12 planet gears for the full range of automotive, EV, and industrial applications.
Sun Gears – The High-Speed Power Input
What is a Sun Gear?
The sun gear is the central, innermost gear of a planetary gear system. It sits at the geometric centre of the assembly, meshing with all planet gears simultaneously. In most applications, the sun gear is the input element it receives rotational power from the engine, motor, or input shaft and distributes it to the planet gears.
Because the sun gear is the input element, it typically rotates at the highest speed in the planetary system, often at engine or motor speed before reduction. This high speed, combined with a continuous mesh with multiple planet gears simultaneously, makes the sun gear one of the most demanding components in any transmission.
Sun gears are used in:
• EV motor reduction gearboxes – sun gear on motor shaft, ring gear fixed
• Automatic transmission planetary sets – multiple sun gears for different ratios
• Industrial planetary speed reducers and increasers
• Wind turbine pitch and yaw drive gearboxes
• Aerospace actuator gearboxes and helicopter tail rotor drives
• Tractor PTO and final drive planetary systems
Unique Requirements of Sun Gear Manufacturing
• High Surface Hardness: Running at high speed with multiple simultaneous mesh contacts, the sun gear tooth surface must achieve 58–62 HRC to resist pitting and contact fatigue over millions of cycles.
• Tight Runout Tolerance: Sun gear runout (eccentricity) directly causes unequal load sharing among planet gears. Runout must be controlled to microns, achievable only with a precision-ground bore and tooth profile.
• Shaft Integration: Sun gears are often integrated with a shaft, either machined from a single forged blank (sun gear shaft) or press-fitted onto a splined shaft. The forged sun gear shaft eliminates the stress concentration of a press-fit interface.
MTF Sun Gear Manufacturing
MTF produces sun gears and sun gear shafts as close-die forged blanks in alloy steel grades, including 20MnCr5, 18CrNiMo7-6, and 42CrMo4, selected based on the required torque, speed, and operating environment. After forging and heat treatment, sun gears are hobbed, shaved, and ground to the precision class required by the customer’s gear drawing with full inspection of tooth profile, lead, pitch, and runout using gear measurement equipment.
The sun gear is the heartbeat of the planetary gear system. Its precision directly determines the noise, vibration, and longevity of the entire transmission, making forged blanks and precision gear grinding non-negotiable.
Pinion Gears – Where Torque Meets Direction
What is a Pinion Gear?
A pinion gear is the smaller of two meshing gears in a gear pair, always paired with a larger gear (wheel, ring gear, or rack). Pinion gears are used to transmit rotational motion, change rotational direction, and amplify torque. Because the pinion is smaller, it rotates faster and carries a higher tooth load per unit area than the mating gear, making it the more highly stressed of the two.
Pinion gears appear in virtually every power transmission system:
• Differential pinion gears – inside the differential, transferring torque to crown wheels
• Steering rack and pinion – the pinion drives the rack to turn the wheels
• Final drive pinion – connects propshaft to rear axle crown wheel
• Crane and hoist slewing drives – large module pinions driving ring gears
• Sugar mill and rolling mill drives – heavy industrial pinion gears
• EV differential pinion gears – in electronic limited-slip differentials
• Wind turbine yaw drives – pinion gears rotating the nacelle into the wind
Pinion Gear vs Crown Wheel – The Classic Pair
The most common pinion application is the crown wheel and pinion (also called ring and pinion) in a vehicle differential. The pinion gear is on the input shaft (from the propshaft or gearbox), and the crown wheel is on the differential carrier. Together, they change the rotational axis by 90 degrees and provide the final gear reduction before the wheels.
Because the pinion rotates many times faster than the crown wheel, it completes far more tooth mesh cycles per kilometre of travel, meaning its fatigue life requirements are the most demanding of any gear in the drivetrain.
MTF Pinion Gear Manufacturing
Forged Pinion Blanks for Maximum Strength
Pinion gears at MTF are produced from close-die forged blanks, ensuring the critical tooth root zone has continuous grain flow aligned with the tooth profile. For differential and final drive pinions, this grain continuity is what separates forged pinions from machined-from-bar alternatives in terms of fatigue life and shock resistance.
Spiral Bevel and Hypoid Pinion Gears
Differential and final drive pinions are typically spiral bevel or hypoid gear geometry, complex curved tooth forms that require specialized gear cutting (Gleason or Klingelnberg process) and lapping with the mating crown wheel. MTF’s gear manufacturing capability includes spiral bevel pinion blank production with the precise stock allowances required for Gleason cutting and lapping.
Heat Treatment for Pinion Gears
• Case Carburizing + Hardening: Standard for automotive pinions – 58-62 HRC tooth surface with tough core for shock absorption
• Lapping After Hardening: Spiral bevel and hypoid pinions are lapped with their mating crown wheel after hardening, producing the optimized tooth contact pattern required for quiet, efficient operation
A pinion gear’s fatigue life is directly proportional to the quality of its blank. Forged pinion blanks outlast machined-from-bar alternatives by a factor of 3-5x in fatigue testing, making close die forging the only choice for automotive, EV, and heavy industrial pinion gears.
MTF’s Complete Gear Manufacturing Capability
MTF’s integrated manufacturing model means we handle every step of gear production from raw material selection through forging, heat treatment, machining, gear cutting, and final inspection under one roof in Rajkot, Gujarat.
Supplying Forged Gears Globally – India, USA & Germany
Germany and Europe
German automotive and industrial OEMs operate under the world’s most demanding gear quality standards DIN precision classes, IATF 16949 supplier qualification, and PPAP documentation for every new part. MTF’s IATF 16949 certification, Zeiss CMM inspection infrastructure, and own warehouse in Germany enable us to supply European gear customers with the documentation, quality, and logistics reliability they require.
USA
American gear manufacturers and OEMs increasingly source forged gear blanks from India to reduce cost without sacrificing quality. MTF’s integrated process forging, heat treatment, and machining under one roof simplifies the US procurement process, reduces supplier count, and provides the PPAP and FAI documentation that US Tier-1 customers require.
India
India’s automotive, tractor, and industrial gearbox manufacturers are rapidly upgrading to forged gear blanks as domestic OEM quality requirements increase. MTF’s Rajkot facility serves Indian customers with fast turnaround, competitive pricing, and the material and process certifications needed to supply Tier-1 automotive and tractor manufacturers.
Conclusion: Every Gear in Every System Deserves the Strength of Forging
Ring gears, planet gears, sun gears, and pinion gears are the building blocks of every power transmission system — from the smallest EV reduction unit to the largest industrial planetary gearbox. Their performance determines the efficiency, noise, and longevity of every machine they power.
The choice of manufacturing process, forging versus machined-from-bar, determines whether those gears deliver their design life or fail prematurely. Close die forging, followed by controlled heat treatment, precision gear cutting, and rigorous inspection, consistently produces gears with superior tooth root strength, longer contact fatigue life, and tighter dimensional consistency than any alternative process.
At MTF, we have built our gear manufacturing capability around this conviction, investing in closed die forging, in-house heat treatment, CNC machining, and gear cutting to deliver ring gears, planet gears, sun gears, and pinion gears that perform in the most demanding automotive, EV, agricultural, and industrial applications worldwide.
